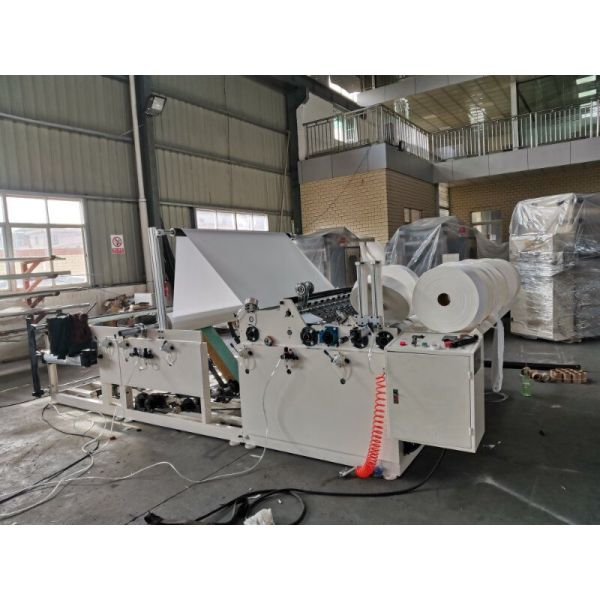

XY-TQ-G Jumbo Roll Slitting And Rewinding Toilet Paper Machine
Automatic Wrapper-type High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi
roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
Functions and Features
1．This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2．Perforation distance is adjustable to meet different distance needs.
3．Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4． Edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5．Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6． Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7． Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8． Adopt jogging switches for wearing the paper, easy and safe to operate.
Technical Parameter
| Model | XY-TQ-2800G Wall Type Automatic Toilet Paper Rewinding Machine | | Jumbo Roll Width | 2800mm (Other size can be specified) | | Jumbo Roll Diameter | Φ1100mm(Other size can be specified) | | Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) | | Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) | | Finished Product Diameter | Φ80~φ140mm | | Finished Product Core Diameter | φ38~φ76mm | | Production Speed | 0~230m/min | | Program Controller | PLC(Delta) | | Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) | | Main Power | 14KW | | Dimension | 7000*4000*1900(L*W*H) | | Weight | About 7T | | Jumbo Roll Layers | 2 Stands(Need to can be specified) | | Edge-Line Embossing(can be specified) | Steel to steel (Pneumatic Control) | | Embossment (can be specified) | with two set embossing roller, steel to rubber. | | Voltage | 380V 50HZ | |
VIDEO LINK : https://youtu.be/uuKCizHqB1Q
--------------------------------------------------------------------------------------------------------------------------------------------------------
WORKSHOP
PACKING AND DELIVERY
| SAY USD DOLLAR ONLY. (FOB Xiamen Price USD) | |
| Packing: In standard export packing wooden pallet. Terms of payment: 100% TT(Pay 30% deposit in advance ,the 70% balance is paid before shipping). Delivery time: About 90days. Guarantee: One year from date of Bill of Lading. Bank Details: BENEFICIAY:Fujian Xinyun Construction Development Co., Ltd OUR BANK AND ACCOUNT: BANK: China Construction Bank Fujian Branch ADDRESS: NO.142 Guping Road Fuzhou Fujian China SWIFT CODE: PCBCCNBJFJX ACCOUNT: 35050165690709201872 | | |
